Name: Road Centerlines

Display Field: FULLNAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>Road Centerlines</SPAN></P></DIV></DIV></DIV>

Service Item Id: 50d8c414b50f4350b042bc1b255f2ea2

Copyright Text: City of Wylie - GIS Disclaimer: The City of Wylie makes no representation or warranty as to the accuracy of these maps or the data that they display. The City of Wylie assumes no responsibility or liability to any user. These maps are not a legal document. They are intended to serve as an aid in graphic representation only.

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: false

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -17463800
YMin: -46132600
XMax: 2613062.8223259524
YMax: 7097339.70993723
Spatial Reference: 102738  (2276)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [0, 0, 0, 255]
Width: 2
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• CENTERLINEID ( type: esriFieldTypeString, alias: Centerline ID, length: 20 )
• FROMLEFT ( type: esriFieldTypeInteger, alias: Left From Address )
• TOLEFT ( type: esriFieldTypeInteger, alias: Left To Address )
• FROMRIGHT ( type: esriFieldTypeInteger, alias: Right From Address )
• TORIGHT ( type: esriFieldTypeInteger, alias: Right To Address )
• FULLNAME ( type: esriFieldTypeString, alias: Full Road Name, length: 125 )
• FEDROUTE ( type: esriFieldTypeString, alias: Federal Route, length: 10 )
• FEDRTETYPE ( type: esriFieldTypeString, alias: Federal Route Type, length: 20 , Coded Values: [Freeway: Freeway] , [Highway: Highway] , [Interstate: Interstate] , ...2 more... )
• AFEDRTE ( type: esriFieldTypeString, alias: Alternate Federal Route, length: 10 )
• AFEDRTETYPE ( type: esriFieldTypeString, alias: Alternate Federal Route Type, length: 20 , Coded Values: [Freeway: Freeway] , [Highway: Highway] , [Interstate: Interstate] , ...2 more... )
• STROUTE ( type: esriFieldTypeString, alias: State Route, length: 10 )
• STRTETYPE ( type: esriFieldTypeString, alias: State Route Type, length: 20 , Coded Values: [Freeway: Freeway] , [Highway: Highway] , [Interstate: Interstate] , ...2 more... )
• ASTRTE ( type: esriFieldTypeString, alias: Alternate State Route, length: 10 )
• ASTRTETYPE ( type: esriFieldTypeString, alias: Alternate State Route Type, length: 20 , Coded Values: [Freeway: Freeway] , [Highway: Highway] , [Interstate: Interstate] , ...2 more... )
• CTYROUTE ( type: esriFieldTypeString, alias: County Route, length: 10 )
• ONEWAYDIR ( type: esriFieldTypeString, alias: One Way Indicator, length: 10 , Coded Values: [FT: From-To] , [TF: To-From] , [B: Blank] )
• ROADLEVEL ( type: esriFieldTypeInteger, alias: Above or Below Grade , Coded Values: [-2: Second Subsurface] , [-1: Subsurface] , [0: Ground Level] , ...4 more... )
• INWATER ( type: esriFieldTypeString, alias: In Water, length: 5 , Coded Values: [Yes: Yes] , [No: No] , [N/A: N/A] )
• ROADCLASS ( type: esriFieldTypeString, alias: Road Class, length: 20 , Coded Values: [Local: Local] , [Trails: Trails] , [Private: Private] , ...5 more... )
• MTFCC ( type: esriFieldTypeString, alias: Census MTFCC Code, length: 5 )
• MUNILEFT ( type: esriFieldTypeString, alias: Municipality on Left, length: 100 , Coded Values: [WYLIE: WYLIE] , [MURPHY: MURPHY] , [SACHSE: SACHSE] , ...12 more... )
• MUNIRIGHT ( type: esriFieldTypeString, alias: Municipality on Right, length: 100 , Coded Values: [WYLIE: WYLIE] , [MURPHY: MURPHY] , [SACHSE: SACHSE] , ...12 more... )
• STATELEFT ( type: esriFieldTypeString, alias: State on Left, length: 2 , Coded Values: [AL: Alabama] , [AK: Alaska] , [AS: American Samoa] , ...56 more... )
• STATERIGHT ( type: esriFieldTypeString, alias: State on Right, length: 2 , Coded Values: [AL: Alabama] , [AK: Alaska] , [AS: American Samoa] , ...56 more... )
• ZIPLEFT ( type: esriFieldTypeString, alias: Zip on Left, length: 5 )
• ZIPRIGHT ( type: esriFieldTypeString, alias: Zip on Right, length: 5 )
• MSAGLEFT ( type: esriFieldTypeString, alias: MSAG on Left, length: 35 , Coded Values: [WYLIE: WYLIE] , [MURPHY: MURPHY] , [SACHSE: SACHSE] , ...12 more... )
• MSAGRIGHT ( type: esriFieldTypeString, alias: MSAG on Right, length: 35 , Coded Values: [WYLIE: WYLIE] , [MURPHY: MURPHY] , [SACHSE: SACHSE] , ...12 more... )
• ESNLEFT ( type: esriFieldTypeString, alias: ESN on Left, length: 5 )
• ESNRIGHT ( type: esriFieldTypeString, alias: ESN on Right, length: 5 )
• LASTUPDATE ( type: esriFieldTypeDate, alias: Last Update Date, length: 8 )
• LASTEDITOR ( type: esriFieldTypeString, alias: Last Editor, length: 50 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• ADDLOW ( type: esriFieldTypeInteger, alias: Lowest Address )
• ADDHIGH ( type: esriFieldTypeInteger, alias: Highest Address )
• RDPRE ( type: esriFieldTypeString, alias: Road Prefix, length: 5 , Coded Values: [N: N] , [S: S] , [E: E] , ...9 more... )
• RDNAME ( type: esriFieldTypeString, alias: Road Name, length: 100 )
• RDSUFF ( type: esriFieldTypeString, alias: RDSUFF, length: 5 )
• RDTYPE ( type: esriFieldTypeString, alias: RDTYPE, length: 10 , Coded Values: [LOOP: LOOP] , [MALL: MALL] , [MEWS: MEWS] , ...81 more... )
• SPEED ( type: esriFieldTypeInteger, alias: Speed )
• AKA ( type: esriFieldTypeString, alias: Also Known As, length: 50 )
• Status ( type: esriFieldTypeString, alias: Status, length: 50 , Coded Values: [Current: Current] , [Pending: Pending] , [Retired: Retired] , ...3 more... )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• LF_ADDR ( type: esriFieldTypeInteger, alias: LF_ADDR )
• LT_ADDR ( type: esriFieldTypeInteger, alias: LT_ADDR )
• RF_ADDR ( type: esriFieldTypeInteger, alias: RF_ADDR )
• RT_ADDR ( type: esriFieldTypeInteger, alias: RT_ADDR )
• FUN_CLASS ( type: esriFieldTypeInteger, alias: FUNCTIONAL CLASS , Coded Values: [1: Interstate] , [2: Other Freeways and Expressways] , [4: Minor Arterial] , ...5 more... )
• OVERPASS ( type: esriFieldTypeString, alias: OVERPASS, length: 3 , Coded Values: [Yes: Yes] , [No: No] , [N/A: N/A] )
• FR_ELEV ( type: esriFieldTypeInteger, alias: From Elevation )
• TO_ELEV ( type: esriFieldTypeInteger, alias: To Elevation )
• COST ( type: esriFieldTypeInteger, alias: COST )
• ALIASID ( type: esriFieldTypeInteger, alias: ALIASID )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

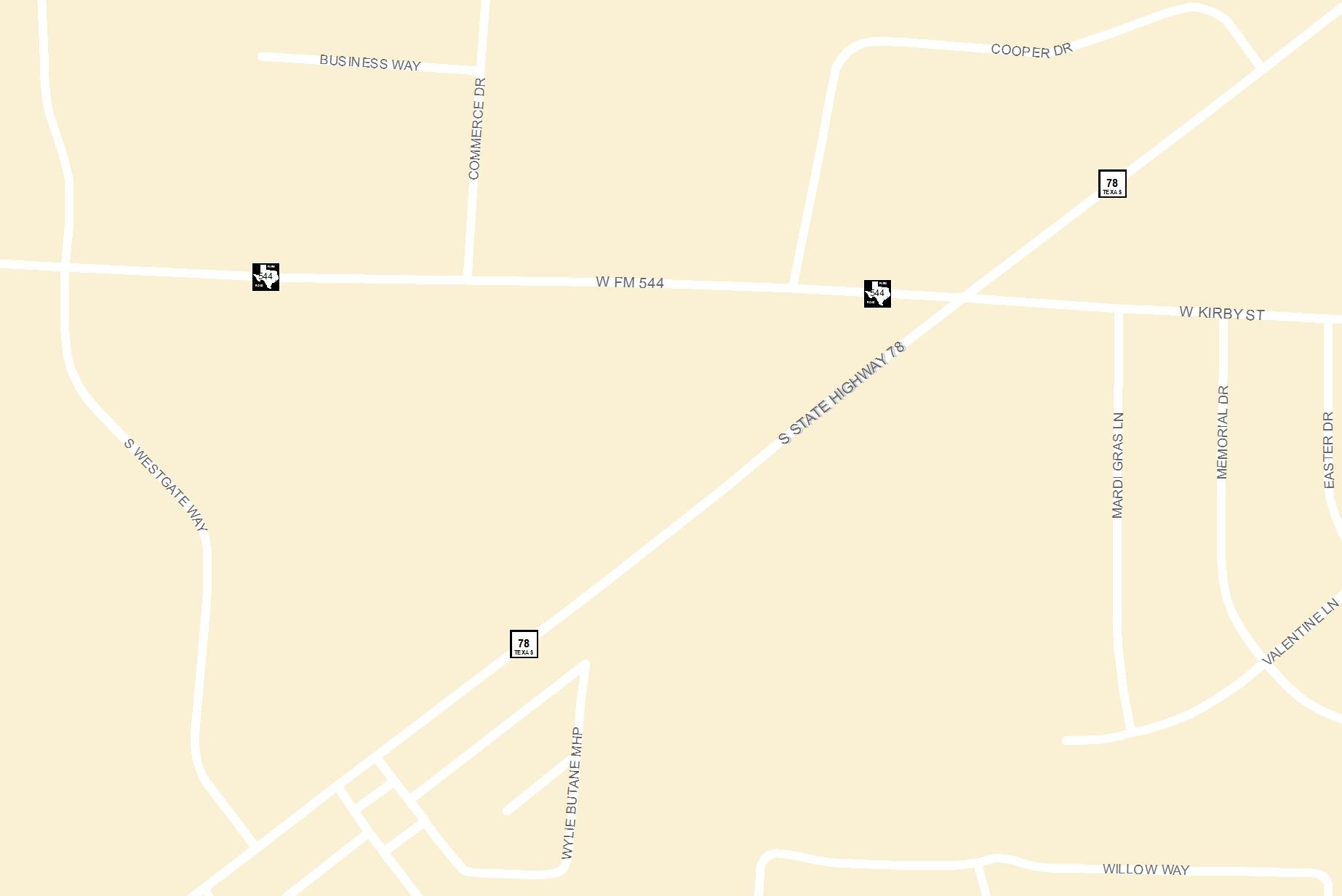

  Iteminfo   Thumbnail   Metadata
